20A 250V Double Pole Switch with Neon - 1 Gang White

Series: W50 Series

Model No.: W50/20L1

Rated Current: 20A 250V~

Color: White

Warranty: 10 years

Standard: British

Certificates: CB, CE, SASO

Wall Switch & Socket IK Level Test Video:

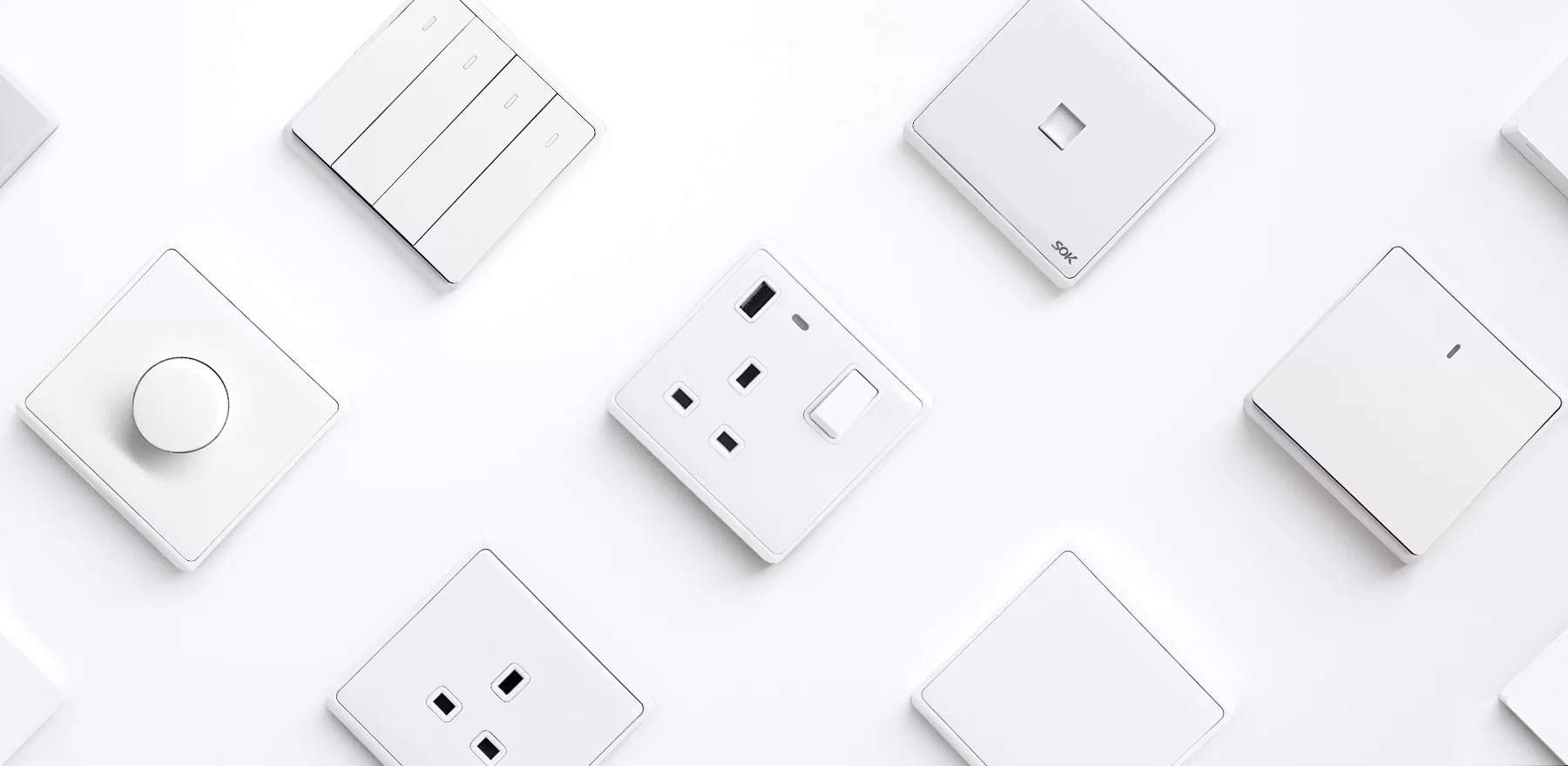

W50 series double pole switch featuring a wide rocker button style, can be impressive in any interiors, whether in residential or office or hotels or commercial.

Having been specialized in Light switches and socket outlets manufacturing since 1985, SOK has developed over 20 series of wiring device products to meet the requirements of BS, European and Italy standards. Inmetro, VDE, ROHS, TUV, CE, CB, GCC, SASO, Certificates are also available.



Product Introduction of the 20A 250V Double Pole Switch with Neon - 1 Gang White

1. The thin button paddles are made of fire-resistant, impact-resistant and fading-resistant PC and PP material with polish finish, which shows a simple style.

2. Handy neonindicator offers subtle but elegant illumination when you switch your life at night.

3. Exquisite craftsmanship lines the corners more smoothly while giving the lines a better look.

4. Every new product is packed well in a poly bag then in boxes and cartons to ensure it’s in good condition when you get it.

5. Features a contemporary style, and the wide ON-OFF button comes in various colors and finishes. Glossy switch button can be customized in other painting finishes even with varnish and other injection colors like beige, red, black, gray etc.

6. LED dimmer switch and PIR switch are available for you to create your desired atmosphere.

7. Wide rocker style Double pole switch gives you both visual enjoyment,10-year warranty and double safety, so you have always got sense of security.

8. Thanks to the compact mechanismsand handy locking between buttons and chassis, this light switch provides time-saving and space-saving solutions.

9. Suits for 25mm mounting box. Can be used for surface and flush mounting.

10. SOK is one of the successful brands in our company which named Guangdong Jinli Electrical Appliance Co., Ltd and was established in 1985. As one of the professional manufacturers in China, Jinli devotes to making light switches and electric socket outlets for 35 years. Soon Jinli has developed into a group that rapidly expands its business including exporting business, domestic business, real estate business and finance business.



Product Parameter (specification) of the 20A 250V Double Pole Switch with Neon - 1 Gang White

Main
Type Wall Switch
Series W50 series
Brand Name SOK
Model Number W50/20L1
Color White
Material high polymer PC, PP
Complementary
Rated Voltage 250V~
Rated Current 20A
Network Frequency 50/60Hz
Number of Gangs 1 Gang
Function Double pole
Actuator Rocker
Device Mounting Flush/Surface mounted
Fixing type Concealed screws
Fixing Mode By screw M3.5
Fixing Screws Material Zinc-plated
Connections Screw terminals(pillar terminal)M3.5*7.2mm
Contacts Material Brass
Embedding Depth 20 mm
Dimension 86*86mm
Environment
Ambient Air Temperature for Operation -5~40℃
Flame Retardancy 850℃
IP degree of protection IP20
Standards BS EN 60669-1



SS 227

IEC 60669

Application Projects like Hotel, plaza, Industrial, hospital, Residential
Contractual Warranty & Tested Lifetime
Tested Lifetime At least 40,000 times
Warranty 10 years
Packing
Packing 1 pcs/ plastic bag 150*120mm



10pcs/box 185*154*93mm

100pcs/carton 490*320*200mm

More Info.
Payment term T/T, L/C, D/P...
MOQ 3000 pcs
Manufacture Guangdong Jinli
Place of Origin Guangdong, China
Certificate SASO, CB, CE, Jinli factory Successfully certified with ISO9001 & ISO14001 quality system certificate





Product Features and Application of the 20A 250V Double Pole Switch with Neon - 1 Gang White



FAQ of the 20A 250V Double Pole Switch with Neon - 1 Gang White



Q: What are your main markets?

A: Our main markets are in Southern East Asia, Middle East, Africa, European Country, South America.



Q: Can you produce according to the sample?

A: Yes, we can produce by your samples or drawings as we have R&D department and mold manufacturing workshop.



Q: How about your price and quality?

A: 1. About the price, our sales team would offer you the best quotation and discounts according to your quantity. Best price with good service, You deserve it!

  1. About the quality, for we have been exportingfor 20 years, and the goods quality would be strictly controlled in each process during manufacturing. And before and after loading, we would send you inspection pics and documents to confirm.



Q: How can I contact you?

A: If you have any ideas, please don’t hesitate to contact us by:

TEL: 86-757-25333127

FAX: 86-757-25333206

WHATSAPP: 86 18988672820

E-MAIL: export01@jinli.com

HTTP: www.sokswitch.com

WEBSITE QR CODE:

FACEBOOK: GUANGDONG JINLI ELECTRICAL APPLIANCE CO., LTD.

FB QR CODE:
