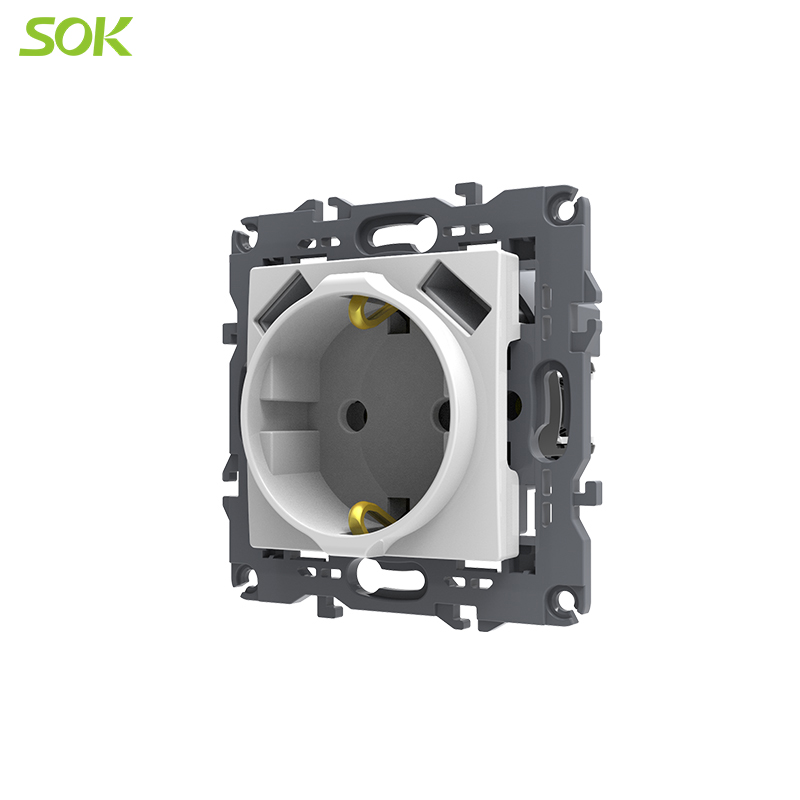

Schuko power socket with double USB port 3.1A 16A with Screw Terminal

Schuko power socket with double USB port 3.1A 16A offer you convenient experience for life. It’s with two USB port and provide 3.1A that match all electronic equipment.



Specifications

Model No.: S81/16U/USB/2
Product or component type:    USB charger + socket outlet
Electrical Parameter 250v~ 16A
5V DC 3.1A
Device presentation:  Complete product, match with S80 series cover
Outlet poles configuration:  2P + E with shutter
Outlet standard description:   Side earth
Outlet standard  Schuko
Ground lug position  Straight 0° position
Number of modules  1 module
Fixing mode By screws and claws
Surface finishing Glossy
Surface treatment  Untreated / Painted
Ambient air temperature for storage -20…60 °C
Ambient air temperature for operation  -5…40 °C
Protection type Against short-circuits
Battery charge protection
Automatic restart after ground fault or main power loss
Thermal protection
Automatic overload protection
Connections – terminals  Screw terminals
Number of terminals 3
Clamping connection capacity 1.5...2.5 mm² for rigid cable(s)
1.5...2.5 mm² for stranded cable(s)
Material  PC (polycarbonate): centre plate
PC (polycarbonate): casing
Mire stripping length 12.5 mm
Standards   EN/IEC 60950      IEC 60884-1
Certification CE
Service life in hours  20000 h 15 W
IP degree of protection  IP20



Product detail





FAQ



Q: Can you do custom made? Price?

A: Yes, glossy switch buttons and surrounds can be customize to other PC color like red, black, cream, gray or painting color like pearl white/yellow, champagne, Black, Brown, Gray, Silver.... Also, painting color can do varnish finish. The price will be negotiated and affordable if the quantity is appreciable. And don't let the price affect your pursuit of ideal atmosphere.



Q: Do products have a Warranty?

A: Yes, SOK offers 10-year worry-free guarantee for all types of switched universal socket outlets, data socket outlets, double pole switch, 2 years for LED dimmer switches... Our efficient sales team and professional technical teams are ready to support your needs.



Q: What kind of service SOK can provide?

A: Presale: Having 20-year exporting experience, we will provide you very effective communication, devoting 100% enthusiasm and patience.

During: We will share you pictures to inform the latest production progress, trace the delivery timely, and help you arrange affordable shipment.

Aftersale: We will provide documents and tracking after shipment and inform you new products timely. And if any problems or questions after sales, please don’t hesitate to contact us and we will give you a satisfactory response. Contact us by TEL: 86-757-25333127/6117/6192/6907 or E-MAIL: export01@jinli.com



Q: How you assure the quality?

A: During the whole production process, our quality control team will strictly inspect each process, from material selecting, material incoming, injection parts selecting, to metal parts punching, to ensure quality and punctual delivery. We also ensure the quality during producing process(line installation, semi automatic installation, automatic installation), packing, storing and loading.
