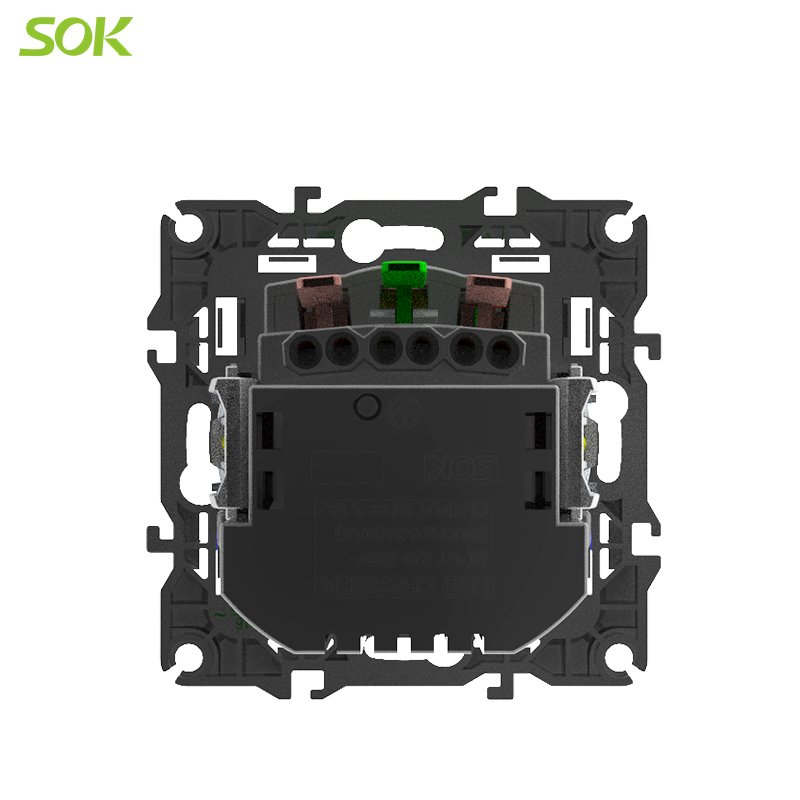

The Schuko power outlet with double Charger 3.1A 16A with Screw Terminal offer you convenient experience for life. It’s with two USB port and provide 3.1A that match all electronic equipment.
Specifications
| Model No.: | S80/16U/USB/2 |
| Product or component type: | USB charger + socket outlet |
| Electrical Parameter | 250v~ 16A |
| 5V DC 3.1A | |
| Device presentation: | Complete product, match with S80 series cover |
| Outlet poles configuration: | 2P + E with shutter |
| Outlet standard description: | Side earth |
| Outlet standard | Schuko |
| Ground lug position | Straight 0° position |
| Number of modules | 1 module |
| Fixing mode | By screws and claws |
| Surface finishing | Glossy |
| Surface treatment | Untreated / Painted |
| Ambient air temperature for storage | -20…60 °C |
| Ambient air temperature for operation | -5…40 °C |
| Protection type | Against short-circuits |
| Battery charge protection | |
| Automatic restart after ground fault or main power loss | |
| Thermal protection | |
| Automatic overload protection | |
| Connections – terminals | Screw terminals |
| Number of terminals | 3 |
| Clamping connection capacity | 1.5...2.5 mm² for rigid cable(s) |
| 1.5...2.5 mm² for stranded cable(s) | |
| Material | PC (polycarbonate): centre plate |
| PC (polycarbonate): casing | |
| Mire stripping length | 12.5 mm |
| Standards | EN/IEC 60950 IEC 60884-1 |
| Certification | CE， CB, TUV, VDE |
| Service life in hours | 20000 h 15 W |
| IP degree of protection | IP20 |
Product detail
FAQS
Q: What materials your product use?
A: For the plastic parts, we mainly use PC material and in different function parts, we also use PP, PA66, TPE, TPU. For the Hardware parts, we use Phosphor copper, red cooper, brass, and silver in different parts.
Q: Are you a manufacturer or trading company?
A: We are manufacturer with company covers 300,000 square meters with over 1300 employee. Our factory located in Shunde Area, Foshan City, Guangdong Province.
Q: How many years guarantee of your products?
A: We offer 10 years guarantee for non-electronic items, 2 year guarantee for electronic items
Q: What payment terms do you accept.
A: We accept TT and LC, DP or OA can be consider after cooperation. If you wanna know more details, please do not hesitate contacting with our sales manager Winny by E-mail: < a href="mailto:export01@jinli.com">export01@jinli.com.
