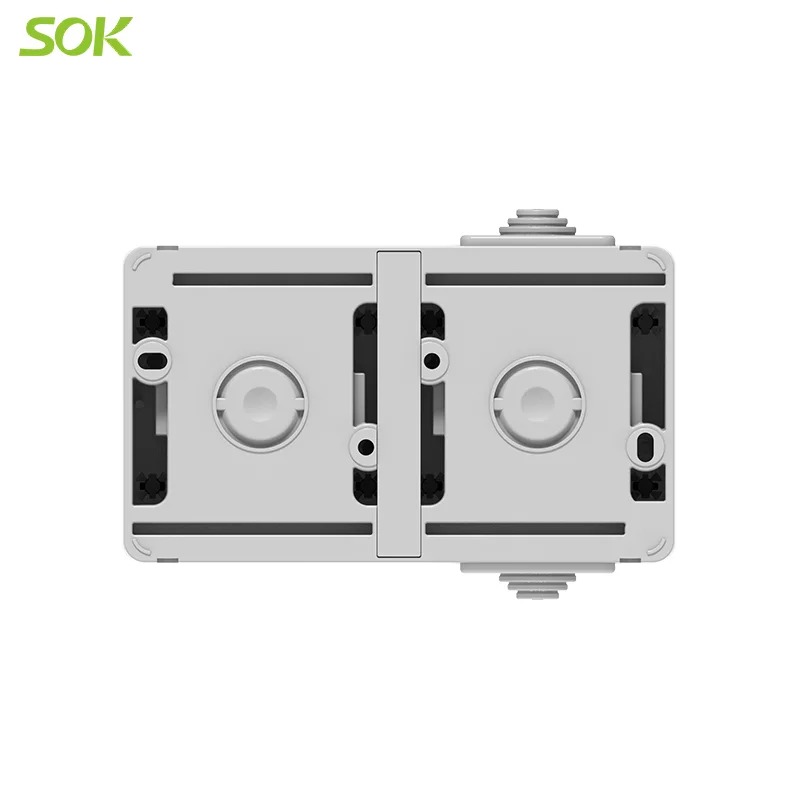

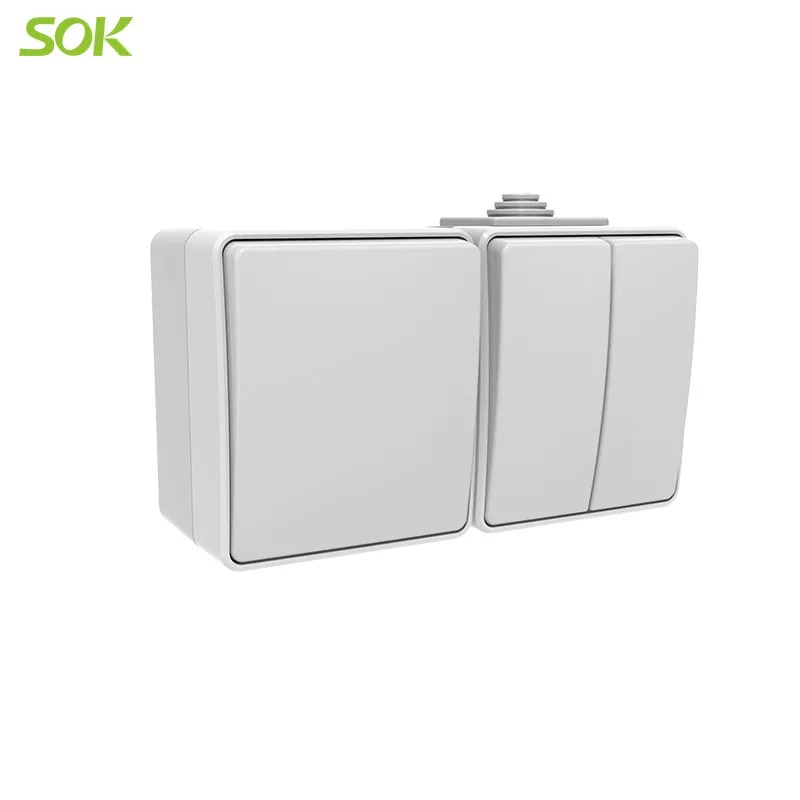

1 Way Switch and 2 Gang Single Way Wall Switch Surface Mounting is Button-Glossy and Enclosure-Matt surface finished design. Its wire stripping length is 12mm for screw-less terminal. For screw terminal type is 10mm. It is made of high quality PC-UV, PP, TPE material to resist chemical influence.
Product characteristics of Horizontal Type 1 Way Switch and 2 Gang Single Way Wall Switch Surface Mounting with Screw-less Terminal
1. 10 years warranty for mechanical switch and socket, 2 years warranty for electronic items, tested lifetime at least 40000 times
2. Both have vertical type and horizontal type for options
3. Have screw-less terminal and screw type terminal to choose. Switch with screw-less connection technology- quick removal from the housing and easy for change
4. IP65 for dust proof and water proof
5. TUV, CE, RoHs certificated approval
6. Use fire resistant, UV resistance, halogen free and TPE material to strengthen product stability and prevent chemical influence
7. With modular fitting design, which is convenient to change different mechanism
8. Quick luck structure, lock or unlock by rotate the screw 90 degree
9. Socket has child-proof shutter to keep you away from electric shock
10. Simple appearance and frugal color, perfect for installingoutdoors

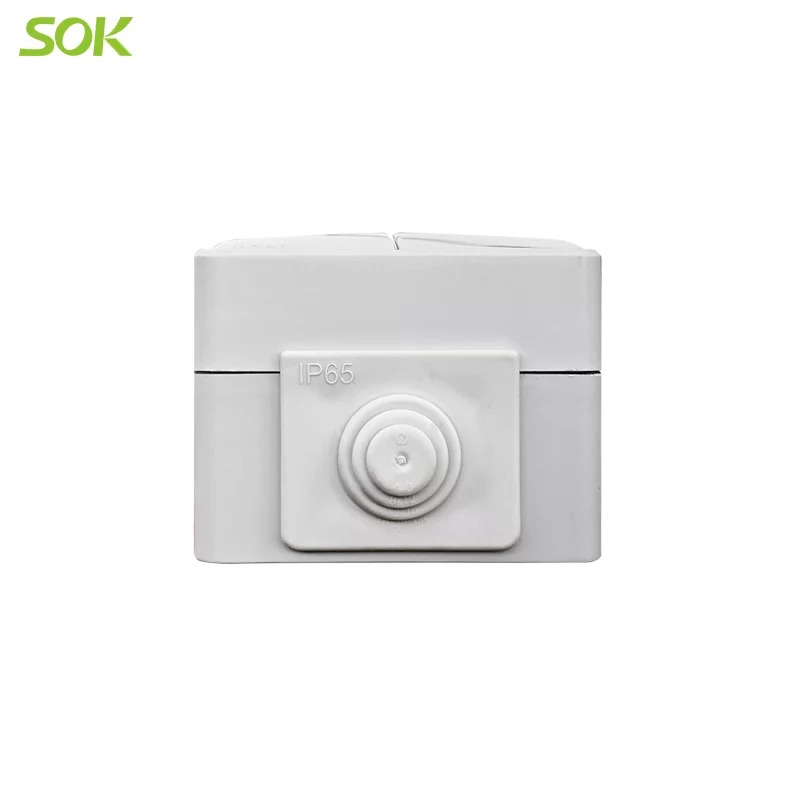

11. Rubber plug can hold φ4-φ20spool
Specification of Horizontal Type 1 Way Switch and 2 Gang Single Way Wall Switch Surface Mounting with Screw-less Terminal
| Main | |
| Type | Wall Switch |
| Series | M65 Series |
| Factory item | M65Q/L1/1/L2/1/H |
| Brand | SOK |
| Color | Light-Gray |
| Complementary | |
| Device mounting | Surface mounting |
| Device presentation | Complete product |
| Switch function | 1 gang 1 way+ 2 gang 1 way |
| Switch number | 2 |
| Rated current | 10AX |
| Rated voltage | 250V~ |
| Network frequency | 50/60Hz |
| Actuator | Rocker |
| Fixing mode | Screw -less terminal |
| Combination type | Switch +switch |
| Surface finish | Button-Glossy, Enclosure-Matt |
| Material | PC-UV, PP ,TPE |
| Enclosure Outlet | ∅4-8/8-12/12-16/16-20mm |
| Wire Stripping Length | 12mm |
| Wire Capacity | 1.5-2.5mm² Rigid |
| Type | Horizontal type |
| Dimension(including rubber plug) | 128.3*90.4*54.2mm |
| Rubber plug depth | 16.4mm |
| Environment | |
| Certification | TUV, CE, Rohs |
| Standard | Euro standard |
| Dielectric Strength | 2000V |
| Fire resistance | 850℃ |
| Ambient Air Temperature for Operation | -15~45℃ |
| Ambient Temperature for Storage | -20-50℃ |
| IP | IP65 |
| IK | 06 |
| Application | Outdoor |
| Life time | |
| Test lifetime | At least 40000 times |
| Warranty | 10 years |
| Packing | |
| Packing | 1pcs/nylon bag, 205*158mm |
| 5pcs/box, 285*140*95mm | |
| 50pcs/carton, 505*300*300mm | |
| G.W | 13.4KGS/CTN |
| More info | |
| MOQ | 3000PCS |
| Payment | TT, L/C |
| Price terms | FOB SHUNDE, C&F |
| Port of loading | SHUNDE, CHINA |
| Place of origin | GUANGDONG JINLI |
| Certificated company | JINLI has ISO9001, ISO14001, OHSAS18000 certification |
| Product ready time | 25~45 days |
| Delivery | By SEA or by AIR |
.jpg)
.jpg)
About JINLI
1. Certificated company and products-Our company have ISO9001, ISO14001, OHSAS18000 certification. Our products obtained international quality certificates, including CE,CB, ROHS, TUV, VDE, SASO, GCC.
2. We do OEM and OEM for2 Global fortune 500 companies for over 20 years
3. We have 3 standard product lines, over 20 series,meet the needs of 96% of the world's countries
4. With Stronglyfinancial strength, low asset-liability ratio, we can offer flexible payment methodsWe have 108 injection machines, 20 high-speed punch machines, 100 assembly lines, monthly production capacity over10 million pieces, which can provide you a fast delivery
5. We have experienced design team and sales team, to solve your problem timely
6. We are focus on switch and socket about 35 year. We are one of the most professional manufacturer of switch and socket in China
Product detail
FAQ
Q: Can you do custom made? Price?
A: Yes, glossy switch buttons and surrounds can be customize to other PC color like red, black, cream, gray or painting color like pearl white/yellow, champagne, Black, Brown, Gray, Silver.... Also, painting color can do varnish finish. The price will be negotiated and affordable if the quantity is appreciable. And don't let the price affect your pursuit of ideal atmosphere.
Q: Do products have a Warranty?
A: Yes, SOK offers 10-year worry-free guarantee for all types of switched universal socket outlets, data socket outlets, double pole switch, 2 years for LED dimmer switches... Our efficient sales team and professional technical teams are ready to support your needs.
Q: What kind of service SOK can provide?
A: Presale: Having 20-year exporting experience, we will provide you very effective communication, devoting 100% enthusiasm and patience.
During: We will share you pictures to inform the latest production progress, trace the delivery timely, and help you arrange affordable shipment.
Aftersale: We will provide documents and tracking after shipment and inform you new products timely. And if any problems or questions after sales, please don’t hesitate to contact us and we will give you a satisfactory response. Contact us by TEL: 86-757-25333127/6117/6192/6907 or E-MAIL: export01@jinli.com
Q: How you assure the quality?
A: During the whole production process, our quality control team will strictly inspect each process, from material selecting, material incoming, injection parts selecting, to metal parts punching, to ensure quality and punctual delivery. We also ensure the quality during producing process(line installation, semi automatic installation, automatic installation), packing, storing and loading.
