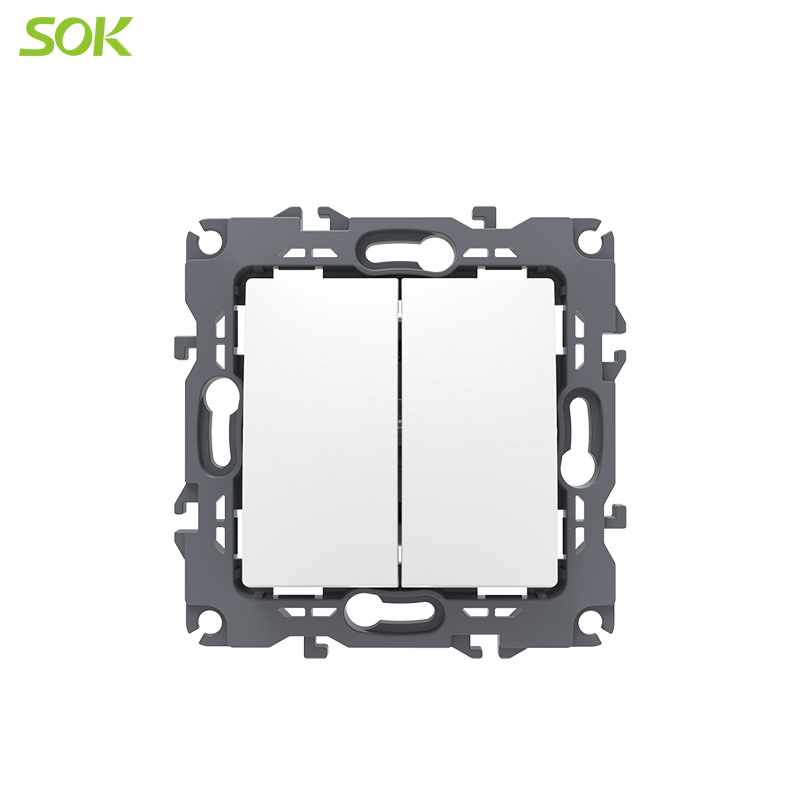

2 Way Wall Switch and 2 Way Push Button with Screwless Terminal

The design of the 2 Way Switch Plus 2 Way Push Button is simple and elegant, the plastic frame can provide enough strength, and the cover can choose the waterproof material. Our company began to develop European standard products in 2012, and the S80 series is one of the most representative series, which has been welcomed by many foreign suppliers. S80 series products mainly include: switches, sockets, information units, accessories.



Product characteristic of 2 Way Wall Switch and 2 Way Push Button with Screwless Terminal

1.Our company covers an area of 300,000 square meters and has hundreds of production lines to guarantee production capacity.

2.The process of product production are strictly comply with the quality management system.

3.The Product obtained the relevant certification such as CE, CB, TUV, VDE etc.

4.The product can equipped the installation hanger, which is convenient for install and remove

5.Strong technical support OEM and ODM service.

6.High efficient feedback during the whole trading



Product Parameters

Product name2  2 Way Wall Switch and 2 Way Push Button with Screwless Terminal
Model No. S80/L1/2/L1/L2
Product or component type Rocker Switch
Electrical Parameter 10 AX at 250 V AC 50/60 Hz
Device presentation: Complete mechanism, match with S80 series cover
Switch function1 2-way
Device application Control
Electrical durability  10000 cycles
Opening distance > 3 mm
Dielectric strength 2000 V
Actuator Rocker
Connections - terminals Screwless terminals
Clamping connection capacity 0...2.5 mm² for rigid cable(s)
0...2.5 mm² for flexible cable(s)
Material  PC (polycarbonate)
Mire stripping length 12.5 mm
Standards   EN/IEC 60669-1
Certification TUV, CE, CB, VDE
IP degree of protection  IP20



FAQ

Q1: Why choose our company?

A1:Because our company has 35 years of leading industry experience, we have a research and development team, mold workshop, hardware workshop, injection molding workshop, electronics workshop, automatic assembly workshop and production workshop, with all the capabilities from product research and development to production. As a result, we are also able to customize switches and sockets for customers if you need.

Q2: What’s your delivery time?

A2: Normally it takes 30-45 days to produce. Our professional service team could makes you follow your order at any time, arrange affordable shipment for you after finishing production.

Q3: Can I get free samples?

A3: Yes, we are willing to arrange free samples for you. Please don’t hesitate to share the one you’re interested in by E-mail: export01@jinli.com. If you have any express account, you can also send us.
