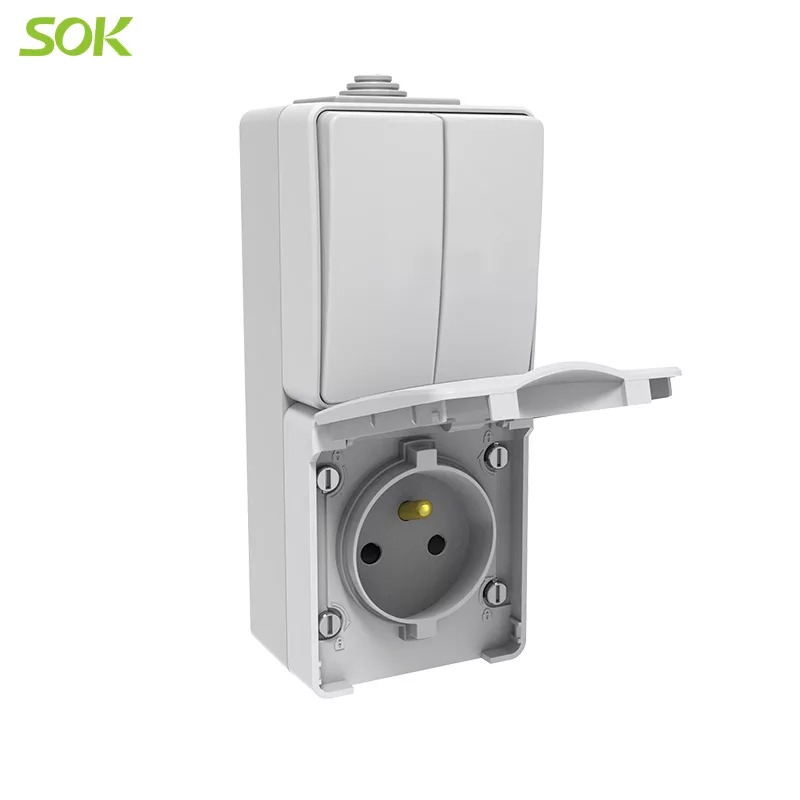

2 Gang 2 Way Light Switch and French Power Outlet with Shutter is surface mounted design with Button-Glossy, Enclosure-Matt of surface finish, good for visual effect. Also, french socket has child-proof shutter design, which keep children away from electric shock. And it obtains international TUV, CE, RoHs quality labels.
Product details of 2 Gang 2 Way Light Switch and French Power Outlet with Shutter Surface Mounting Vertical Type
1. Modular design, easy to combine different mechanism product
2. Fast lock structure, lock or unlock by rotate screw 90 degree
3. Switch and socket have screw terminal and screw-less terminal for options. Screw -less terminal for fast and reliable wiring
4. Rubber plugs can hold φ4-φ20 spool
5. Ambient Temperature for Storageis -20-50℃, Ambient Air Temperature for Operation is -15~45℃
6. Use PC-UV material can effectively decrease UV influence
7. Use thermoplastic, fire-resistant, halogen freematerial to prevent chemical influence
8. Button-Glossy, Enclosure-Mattof surface finish, good for visual effect
9. Switch and socket have horizontal type and vertical type to choose, free combination for switch and socket
10. Mechanical switch and socket is 10 years for warranty, tested life time at least 40000 times
11. With IP degree of protection IP65, product has dust proof and water proof function
Specifications of 2 Gang Double Way Light Switch and French Power Outlet with Shutter Surface Mounting Vertical Type
| Main | |
| Type | Wall Switch |
| Series | M65 Series |
| Factory item | M65/L2/2/FR/V |
| Brand | SOK |
| Color | Light-Gray |
| Complementary | |
| Device mounting | Surface mounting |
| Switch function | 2 gang 2 way |
| Switch number | 1 |
| Socket number | 1 |
| Poles description | 2P+E |
| Combination type | Socket +switch |
| Outlet standard description | French socket |
| Parameter |
Switch: 10AX,250V~ Socket: 16A, 250V |
| Network frequency | 50/60Hz |
| Actuator | Rocker |
| Surface finish | Button-Glossy, Enclosure-Matt |
| Fixing mode | Screw terminal |
| Material | TPE, PP, PC-UV |
| Enclosure Outlet | ∅4-8/8-12/12-16/16-20mm |
| Wire Stripping Length | 10mm |
| Wire Capacity | 1.5-2.5mm² Rigid |
| Material | PP, TPE, PC-UV |
| Dimension(including rubber plug) | 64.0 X 165.0 X 54.2mm |
| Rubber plug depth | 16.4mm |
| Environment | |
| Certification | TUV, CE, Rohs |
| Standard | Euro standard |
| Dielectric Strength | 2000V |
| Fire resistance | 850℃ |
| Ambient Air Temperature for Operation | -15~45℃ |
| Ambient Temperature for Storage | -20-50℃ |
| IP | IP65 |
| IK | 06 |
| Application | Outdoor |
| Life time | |
| Test lifetime | At least 40000 times |
| Warranty | 2 years for electronic switch, 10 years for socket |
| Packing | |
| Packing | 1pcs/nylon bag, 250*120mm |
| 5pcs/box, 285*190*75mm | |
| 50pcs/carton, 405*395*300mm | |
| G.W | 13.8KGS/CTN |
| More info | |
| MOQ | 3000PCS |
| Payment | TT, L/C |
| Price terms | FOB SHUNDE, C&F |
| Port of loading | SHUNDE, CHINA |
| Place of origin | GUANGDONG JINLI |
| Certificated company | JINLI has ISO9001, ISO14001, OHSAS18000 certification |
| Product ready time | 25~45 days |
.jpg)
Product detail
FAQ
Q: Can you do custom made? Price?
A: Yes, glossy switch buttons and surrounds can be customize to other PC color like red, black, cream, gray or painting color like pearl white/yellow, champagne, Black, Brown, Gray, Silver.... Also, painting color can do varnish finish. The price will be negotiated and affordable if the quantity is appreciable. And don't let the price affect your pursuit of ideal atmosphere.
Q: Do products have a Warranty?
A: Yes, SOK offers 10-year worry-free guarantee for all types of switched universal socket outlets, data socket outlets, double pole switch, 2 years for LED dimmer switches... Our efficient sales team and professional technical teams are ready to support your needs.
Q: What kind of service SOK can provide?
A: Presale: Having 20-year exporting experience, we will provide you very effective communication, devoting 100% enthusiasm and patience.
During: We will share you pictures to inform the latest production progress, trace the delivery timely, and help you arrange affordable shipment.
Aftersale: We will provide documents and tracking after shipment and inform you new products timely. And if any problems or questions after sales, please don’t hesitate to contact us and we will give you a satisfactory response. Contact us by TEL: 86-757-25333127/6117/6192/6907 or E-MAIL: export01@jinli.com
Q: How you assure the quality?
A: During the whole production process, our quality control team will strictly inspect each process, from material selecting, material incoming, injection parts selecting, to metal parts punching, to ensure quality and punctual delivery. We also ensure the quality during producing process(line installation, semi automatic installation, automatic installation), packing, storing and loading.
