13A 250V Single Pole Switched BS Socket Outlets with Neon - 1 Gang White

Series: W50 Series

Model No.: W50/13UKD

Rated Current: 13A 250V~

Color: White

Size: 86X86 mm

Quality Assurance:10 years

Standard: British

Certificates: CB, CE, SASO, GCC



13A 250V Single Pole Switched BS Socket Outlets with Neon - 1 Gang White

Soft corners and edges design that can efficiently avoid scratching. W50 series provide a wide panel design which is modern and aesthetic, and its easier to install

SOK has over 20 ranges products meeting Italy, Europe and British standards, obtained SASO, GCC, ROHS, CE, CB, VDE, TUV and Inmetro certificates.


Product Introduction of the 13A 250V Single Pole Switched BS Socket Outlets with Neon - 1 Gang White

1. The glossy cover plate is slim but solid enough, matched with matt insert and switch paddle.

2. The key benefits are that the back housing is only 15mm and it applies a faster installation design, which is ideal for all applications where space in mounting-boxis limited.

3. With children protective and dust-proof shutter, this switch British outlet can effectively avoids the electricl accident. Shutter’s function: three holes must be inserted at the same time to contact with copper pieces, also ideal during decoration.

4. The price is  competitive and have 10 year warranty.

5. Thanks to a concealed-screws and flat-paneldesign, this single pole switched outlet is easy to clean.

6. Ideal for commercial building, residential places, comfortable hotels, museum and home decro.

7. Loading less than one container with trade term FOB SHUNDE is acceptable.

8. On time delivery, in general 30-40 days

9. The quality of our light switches and socket outlets will be ensured.

10. With over 1300 staffs, 108 injection machines, 20 high speed punching machines, 100 manual assembly lines, 9 automatic assembly lines, our monthly capacity can reach over 10 million pieces.


Product Parameter (specification) of the 13A 250V Single Pole Switched BS Socket Outlets with Neon - 1 Gang White

Type Switched BS outlet
Series W50 series
Brand Name SOK
Model Number W50/13UKD

Insert- matt finish white or customized;

Cover frame- glossy finish white

Material High polymer PC, PP
Rated Voltage 250V~
Rated Current 13A
Network Frequency 50/60Hz
Number of Gangs 1 Gang, 2 Gangs available
Function Single pole, or Double pole switch available
Actuator Rocker
Device Mounting Flush or surface mounted
Fixing type Concealed screws
Fixing Mode By screw M3.5*25mm
Fixing Screws Material Zinc-plated
Rivets Material Brass
Connections Screw terminals(pillar terminal)M4*9mm
Contacts Material Brass
Embedding Depth 15 mm
Dimension 86*86mm
Ambient Air Temperature for Operation -5~40℃
Flame Retardancy 850℃
IP degree of protection IP20

BS 1363-2

SASO 2203

SS 145

MS 589

Application Industrial, Hotel, House, Restaurant, Hospital
Contractual Warranty
Warranty 10 years

1 pcs/ plastic bag 150*120mm

10pcs/box 185*154*93mm

100pcs/carton 490*320*200mm

More Info.
Payment term T/T, L/C, D/P, D/A...
MOQ 3000 pcs
Manufacture Guangdong Jinli
Place of Origin Guangdong, China
Certificate CB, CE, ROHS, SASO, GCC, ISO9001 & ISO14001


Product Features and Application of the 13A 250V Single Pole Switched BS Socket Outlets with Neon - 1 Gang White

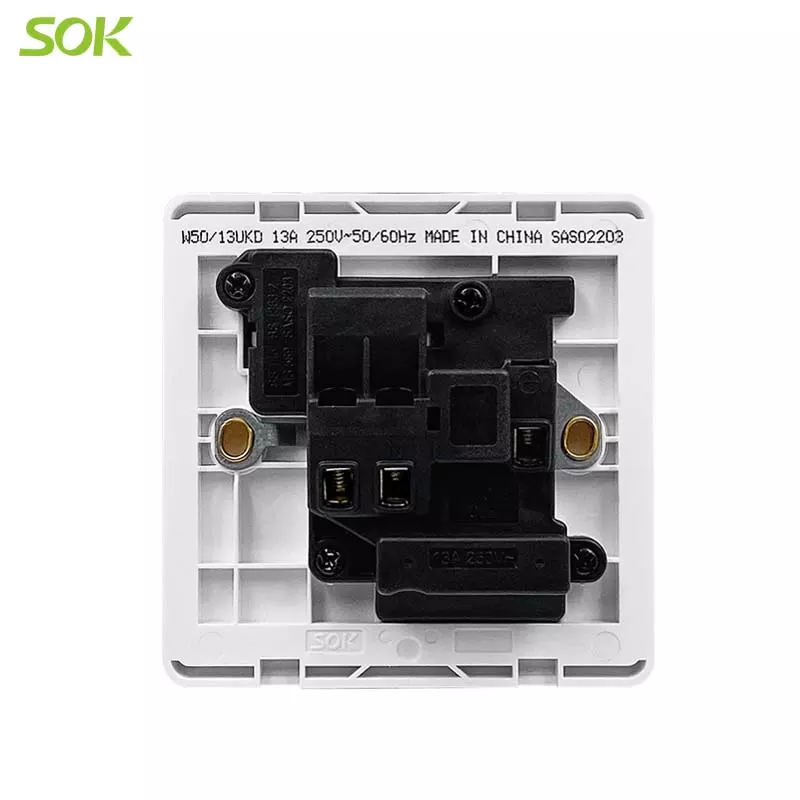

Product Image:




Assembling Instruction:


FAQ of the 13A 250V Single Pole Switched BS Socket Outlets with Neon - 1 Gang White


Q: What is the functions of high polymer PC used on this product?


A: High polymer PC material is highly resistant to fire, impact, distortion, corrosion and discoloration. Cover panel, housing and surround can pass 850℃ flammable test.



Q: Can you give us tips for selecting British socket?



1. When you select the panel, the first thing you pay attention to is its appearance. The high-quality plastic used on thesurface looks very smooth and glossy. Good quality PC material is great resistance to flame, insulation, impact and fading. The most important thing is that it efficiently prevent the occurrence of fire accident


2. In addition, we need to care its internal structure.Oldswitches generally used pure silver or silver-cadmium alloy as the contact material, but now, many well-known brands use silver-nickel alloy as the contact material because pure silver and silver-cadmium alloy are prone to pollution.


3. The performance of silver-nickel alloy is better than pure silver or silver-cadmium alloy. Using silver-nickel alloyas terminals can not only prevent oxidation caused by the arc when the switch is on and off, but also does noteasy to deform and diffuse. In this case, the switch has a longer service life, bringing consumers a safety guarantee.


4. When you select the switch and socket plates, you still have to verify whether products have passed safety certification. Domestic brands in China generally have to pass 3C certification, ISO9000 series certification, etc. Exporting wiring device products have to obtain Certification of the importing country like CE, CB, SASO, GCC, TUV, VDE, etc. Besides, in order to prevent children from inserting their hands into the socket, it is recommended tobuy a socket with a safety shutter.
