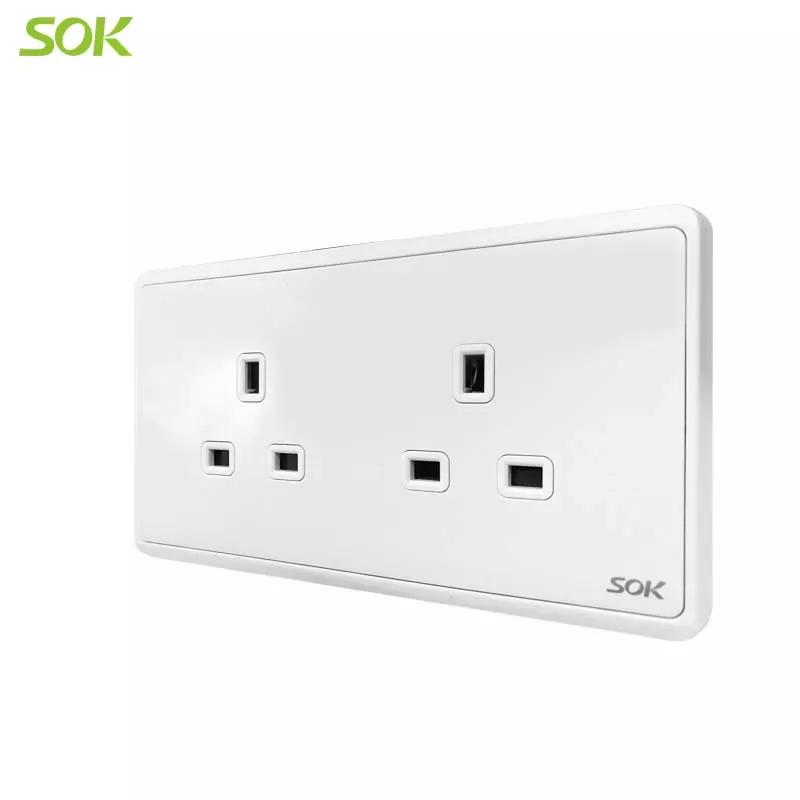

13A 250V BS Socket Outlets - 2 Gang White combines with fashionable and aesthetic elements in its elegant design, selecting impact-resistant and fire-resistant PC material, which improves your place to be more impressive while keeps it solid.



Product Introduction of the 13A 250V BS Socket Outlets - 2 Gang White

1. Improved design is very convenient for installation and also provides a simple but pleasing outlook. Lightly clip the cover plate on support frame after finishing fixing the outlets on wall. Poke the holes from the side and lift up the cover plate for disassembling.

2. Chooses high polymer PC material with good quality on panel and surround, which has the function of fire resistance, discoloration resistance, impact resistance, scratches resistance and fading resistance.

3. No worry for getting electric shock when you install the item on wall as E pole components are riveted on the fixing hole.

4. The glossy cover plate and matt inserts can be customized in other injection colors and beautiful painting finishes.

5. Child protective door design can effectively avoid accident: single hole poking can not insert and can not contact metal components.

6. Thanks to the wide connection space(6mm*4mm), this power outlet offers faster wiring.

7. Both 2 gang switched BS sockets and 45A double pole switch  are available.

8. Quality Guarantee for over 10 years.

9. Ensure high quality with very competitive price with 35 year’s experience in switches and sockets manufacturing.

10. The best services we offer,the most satisfaction you will have.



Product Parameter (specification) of the 13A 250V BS Socket Outlets - 2 Gang White

Main
Type	Unswitched BS plug socket
Series	W50 series
Brand Name	SOK
Model Number	W50/13U/2
Color	Insert- matt finish white; Cover frame- glossy finish white Also can do customization
Material	High polymer PC, PP
Complementary
Rated Voltage	250V~
Rated Current	13A
Network Frequency	50/60Hz
Number of Gangs	1 Gang, 2 Gangs available
Function	Single pole, or Double pole switch available
Actuator	Rocker
Device Mounting	Flush or surface mounted
Fixing type	Concealed screws
Fixing Mode	By screw M3.5*25mm
Fixing Screws Material	Zinc-plated
Rivets Material	Brass
Connections	Screw terminals(pillar terminal)M4*9mm
Contacts Material	Brass
Embedding Depth	15 mm
Dimension	86*147mm
Environment
Ambient Air Temperature for Operation	-5~40℃
Flame Retardancy	850℃
IP degree of protection	IP20
Standards	BS 1363-2 SASO 2203 SS 145 MS 589
Application	Industrial, Hotel, Restaurant, Commercial, Residential
Contractual Warranty
Warranty	10 years
Packing
Packing	1 pcs/ plastic bag 205*115mm 6pcs/box 185*154*93mm 60pcs/carton 490*320*200mm
More Info.
Payment term	T/T, L/C, D/P, D/A...
MOQ	3000 pcs
Manufacture	Guangdong Jinli
Place of Origin	Guangdong, China
Certificate	CB, CE, SASO, ROHS, GCC, ISO9001 & ISO14001



Product Features and Application of the 13A 250V BS Socket Outlets - 2 Gang White

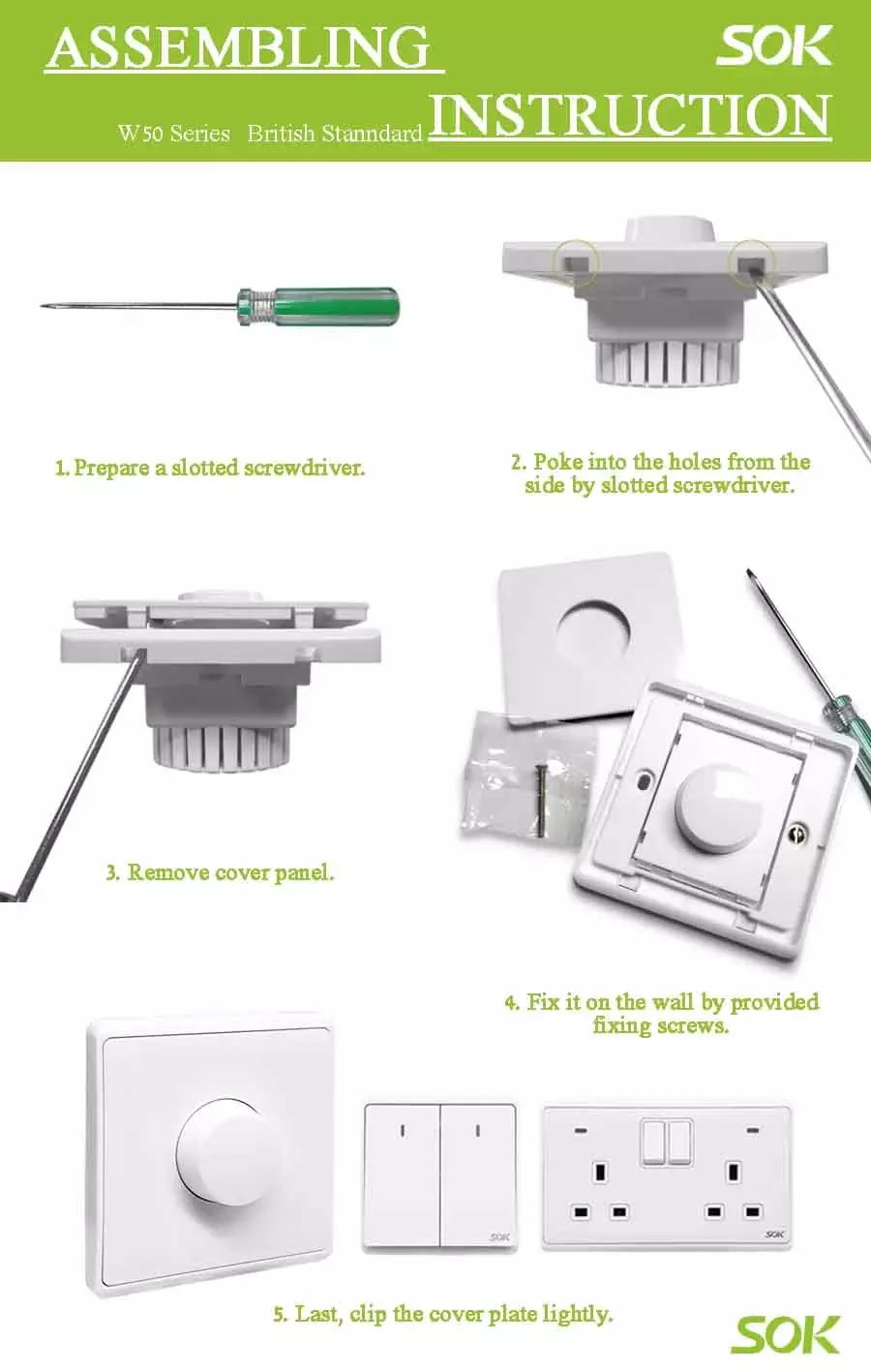

ASSEMBLING INSTRUCTION:





FAQ of the 13A 250V BS Socket Outlets - 2 Gang White



Q: Can you do OEM for us?



A: Yes, OEM or ODM is welcomed. We have confidence because we have OEM and ODM for 2 Global fortune 500 companies for over 20 years. Printing your brand on packing and products, customizing, arranging shipment, mold making, product innovating, all these we can do.





Q: What application conditions of BS socket outlets?



A: 1). The ambient temperature range of the socket: -5 ℃ -40 ℃, the average ambient temperature over 24 hours shall not exceed 25 ℃.

2). Do not directly place the socket in an environment that may exceed the temperature range listed in clause  such as placing in the sun or near heat sources.

3). Not applicable to altitudes above 2000 meters.

4). Do not use in abnormal contaminated environment, such as smoke, chemical smog, rain, fog and other long-term high humidity environment or other abnormal environment.





Q: Why is BS plug called the safest power plug?



A: 1). Plug pins: Half of the pins of the Neutral and Live pins are surrounded by insulators, which can prevent the risk of electric shock caused by accidental contact. So even if the British plug is not fully inserted into the socket, the exposed part will not cause danger. Besides, the ground pin of the British plug is slightly longer than the Neutral and Live pins. This ground is responsible for "opening" the protective door of the socket, so that the Neutral and Live pins can be inserted and used with electricity.

2). Socket design: At least two screwdrivers are required to insert in the British socket, which can effectively prevent accident caused by children.

3). Built-in fuses: During the Second World War, due to a shortage of copper, the British government designed fuses on each plug instead of wiring them directly. Although the built-in fuses increased the size of the British plug, in the event of an accident, the anti-surge will automatically cut off the power supply, which can effectively prevent accidents such as fire and electric shock. It is safer to use and more convenient to repair.

4). Circuit design: Finally, the British plug for wiring is not only very intuitive, but also carefully designed. Once the plug and wire are snapped off, the Neutraland Live wire is disconnected first, while the ground wire is still connected, which effectively prevents the risk of getting electric shock.

In the end, the design of British plugs is more people-oriented and safety-oriented. From the details to the general, British plugs have done a perfect treatment, and compared to other types of plugs, it is safer indeed.
