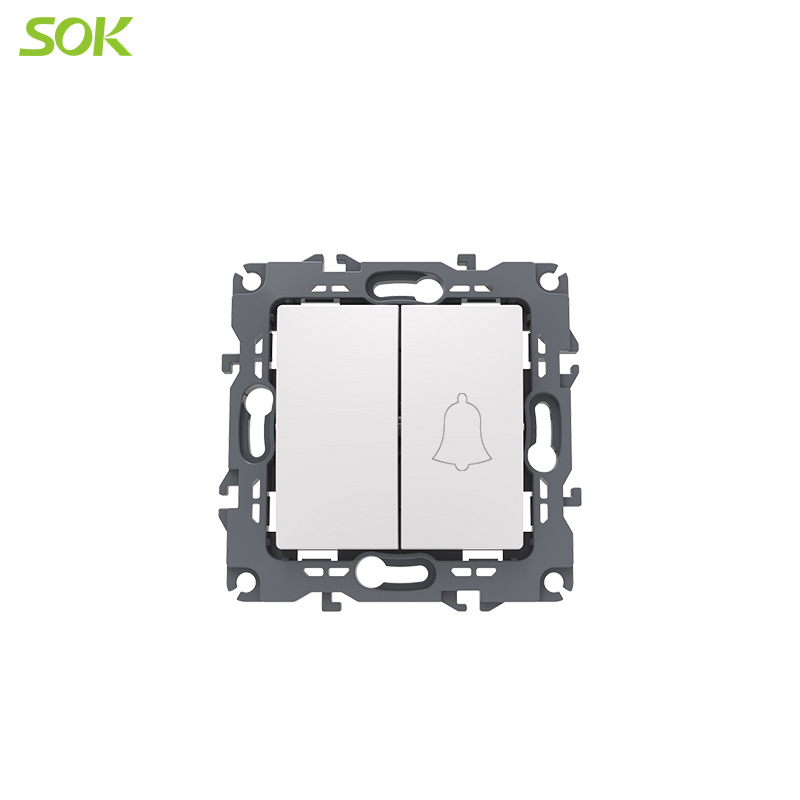

1 Way Wall Switch and 1 Way Push Button with Screwless Terminal

From the details to the  2 Gang 2 Way Light Switch overall design, In the S80 series,every place can reflect our attitude. We always put quality first and insist on making products that satisfy our customers. Choose our products, choose to cooperate with us, you will be satisfied.

Product characteristic of 1 Way Wall Switch Plus 1 Way Push Button

1.The high quality material to ensure your safety

The metal sleeve inside the back-housing is made of brass material that is not easy to rust and durable, and the back-housing can withstand the high temperature test of 850℃

2.Various rang can provide to choose

1 Way Wall Switch + 1Way Push Button, 2 Way Wall Switch + 2Way Push Button, 2 Gang 2 Way Push Button you can choose.

3.Up to 5 Gang frame can you match freely

You can depend on your real situation to march different type of switch and socket.

4.Long lifetime

All of the switches from S80 series can operate at least 40,00 times and have the 10-yeard warranty.


Product Parameters

Product name 1 Way Wall Switch Plus 1 Way Push Button
Model No. S80/L1/1/L1/L1
Product or component type Rocker Switch
Electrical Parameter 10 AX at 250 V AC 50/60 Hz
Device presentation: Complete mechanism, match with S80 series cover
Device application Control
Electrical durability  10000 cycles
Opening distance > 3 mm
Dielectric strength 2000 V
Actuator Rocker
Number of button 2
Connections - terminals Screwless terminals
Clamping connection capacity 0...2.5 mm² for rigid cable(s)
0...2.5 mm² for flexible cable(s)
Material  PC (polycarbonate)
Mire stripping length 12.5 mm
Standards   EN/IEC 60669-1
Certification TUV, CE, CB, VDE
IP degree of protection  IP20


Our service:

1.Twenty years of rich foreign trade experience, 24 hours online to answer your doubts.

2.If the product you need is not found in our product catalog. It does not matter, we can also provide customized services.

3.Your requirements tell us that a professional R & D team will serve you. The use of electrical switch light control products needs to consider different application places and uses, and different costs will be generated due to different use environments. Please provide the above information before purchase, we will provide the best solution based on your information to reduce your purchase cost.

4.If you are interested in our company's products, you are welcome to contact us by email or telphone:export01@jinli.com/86-757-25333127, or leave your contact information on the homepage.
