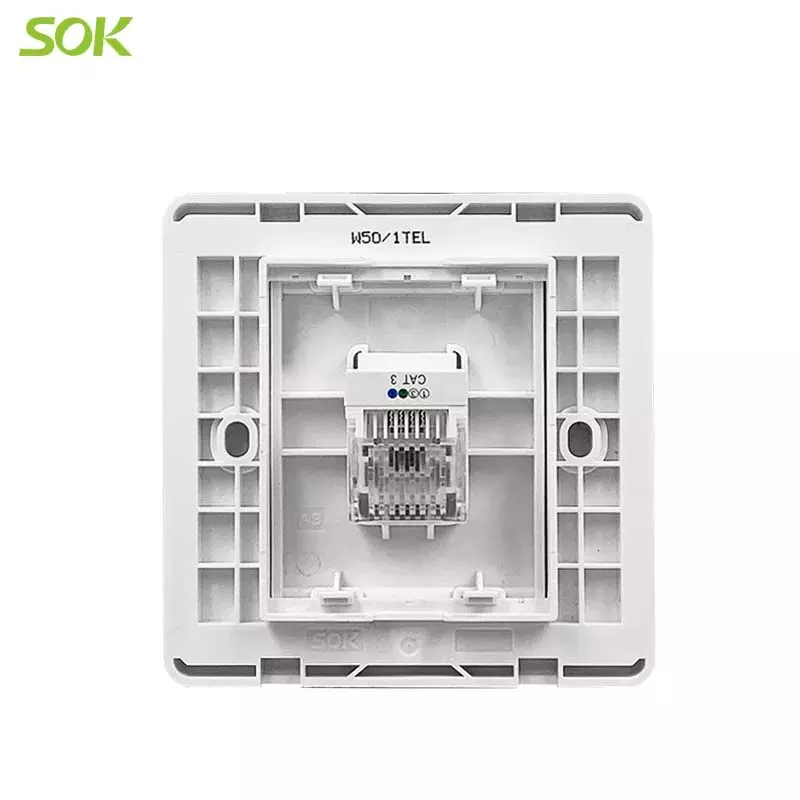

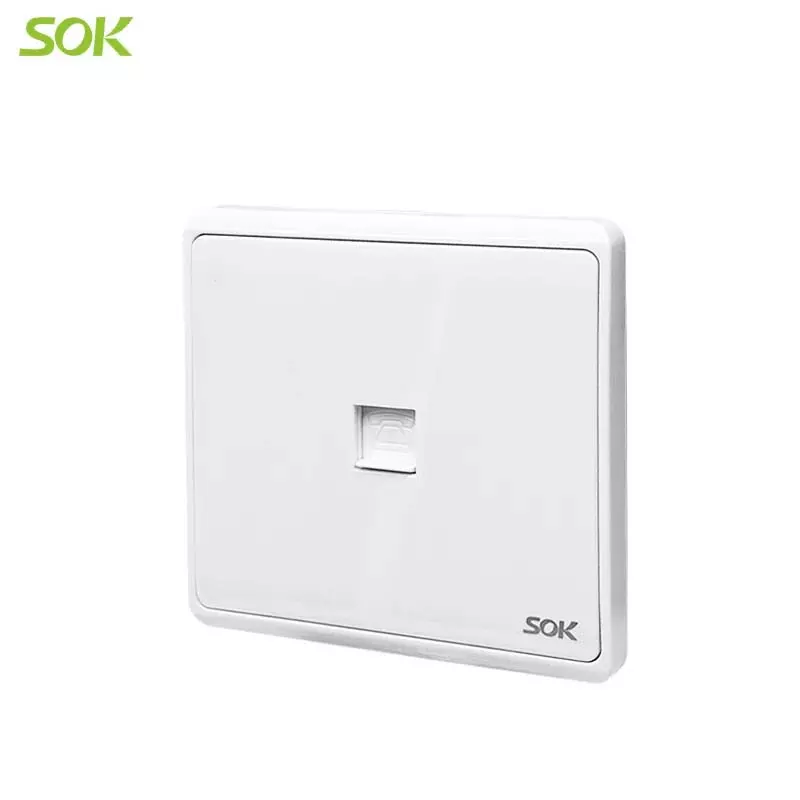

1 Gang RJ11 TEL Socket Outlet - White

Series: W50 Series

Model No.: W50/1TEL

Color: White

Size: 86X86 mm

Quality Assurance:10 years

Standard: British

Certificates: CB, CE, SASO, GCC





As a essential and integral wiring device, this TEL Socket Outlet features glossy surface, smoother edges and pure white color, which is aesthetic pleasing and suitable for many decoration style.



Product Introduction of the 1 Gang RJ11 TEL Socket Outlet - White

1. Features a clean and simple appearance with a concealed-screw design.

2. Use high polymer PC material on cover and frame, which is highly resistant to fading, discoloration, heating, impact, and scratches.

3. Exquisite TEL pattern on the door with functions of waterproof, dustproof, prevention of electric shock risk caused by children.

4. Eco-friendly: all material and TEL modular have ROHS certification.

5. Customization: The glossy surface can be changed to other painting finishes and injection colors like dark gray, beige, champagne, black, silver, golden, etc.

6. TV outlets, LAN outlets and universal socket outlet are available.

7. Ideal for office building, commercial building, residential building.

8. We offer various payment terms like D/P, L/C, Cash, T/T, D/A, Western Union.

9. There are over 20 product ranges containing 3 standards(British, Italy, Europe) for 96% markets in the world. And our products have obtained the ROHS, CE, CB, TUV, VDE, SASO, GCC, Inmetro certificates.



Product Parameter (specification) of the 1 Gang RJ11 TEL Socket Outlet - White

Main
Type TEL socket
Series W50 series
Brand Name SOK
Model Number W50/1TEL
Color White
Material High polymer PC
Complementary
Number of Gangs 1 Gang, 2 Gangs available
Device Mounting Flush or surface mounted
Fixing type Concealed screws
Fixing Mode By screw M3.5*25mm
Fixing Screws Material Zinc-plated
Embedding Depth 15 mm
Dimension 86*86mm
Environment
Flame Retardancy 850℃
IP degree of protection IP20
Application Industrial, Hotel, Club, Restaurant, Hospital, Residential
Contractual Warranty
Warranty 10 years
Packing
Packing

1 pcs/ plastic bag 150*120mm

10pcs/box 185*154*93mm

100pcs/carton 490*320*200mm

More Info.
Payment term T/T, L/C, D/P, D/A...
MOQ 3000 pcs
Manufacture Guangdong Jinli
Place of Origin Guangdong, China
Certificate ROHS, CB, CE, SASO, GCC, ISO9001 & ISO14001



Product Features and Application of the 1 Gang RJ11 TEL Socket Outlet - White



FAQ of the 1 Gang RJ11 TEL Socket Outlet - White



Q: What need to pay attention to when installing telephone socket?



A: 1. The style and color of the phone socket is better to match the overall style of the room. For example, if the overall tone of the interior decoration is light, then you should not use black, brown and other dark telephone sockets. SOK can do customization according to clients’ demands.

2. It is best to install a splash-proof box or plastic baffle on the phone socket panel to prevent the rick of electric shock.

3. The surface-mounted socket should be no less than 1.8 meters from the ground; the surface-mounted socket should not be less than 0.3 meters from the ground.

4. The power conductor must use copper wire cross section. If the conductor is theold one, you must replace the original aluminum wire with copper wire. Because the aluminum wire is easily oxidized, and the joint is easy to catch fire. Surveys have shown that residential buildings that use aluminum wires have an electrical fire occurrence rate that is dozens of times that of copper wire.

5. In addition, for the sake of beauty, many families will adopt the methods of slotting and buried wires, and laying of hidden pipes. When wiring, you must follow the principle of "live wire connected to switches, zero wire connected to lamp holders", and a leakage protection device must be installed on the telephone socket.





Q: Can you do custom made? Price?



A: Yes, switch paddle and surround can be customized to other injection color or painting color. Painting color can also do varnish finish. The price will be competitive and affordable if the quantity is considerable. And don't let the price affect your pursuit of desire atmosphere.





Q: How to disassemble the cover plate?



A: Insert to two holes by slotted screwdriver from the bottom side to disassemble, and lightly clip the cover panel on the chassis after fixing the socket on wall. ASSEMBLING INSTRUCTION AS BELOW:
